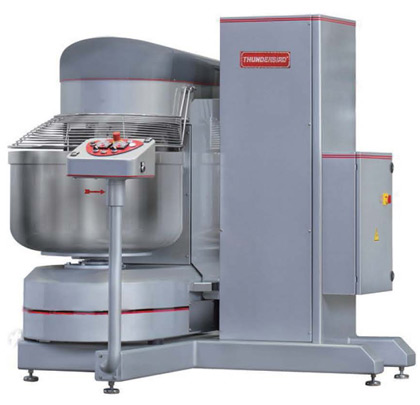

Spiral Mixer ASP-160(L)

"Spiraling the competitor out of control"

Specifications

Reinforced Self-Empty Spiral Mixer
Capacity:
Flour capacity (kg)/(lbs)
100/220
Dough capacity (kg)/(lbs)
160/352
Bowl capacity (qts)
281
Dia. of bowl (mm)
900mm/36in
Height of bowl (mm)
450mm/17.80in
Motor:
Horsepower
12Hp / 1.5HP
1st speed (kw)
4.8
2nd speed (kw)
7.6
Bowl(kw)
0.78
Dimensions:
Width (mm)
1750mm/69in
Length (mm)
1586mm/62.5in
Height(mm)
2155mm/85in
Machine Weight  (kg/lb):
1490/3278
